Specifications

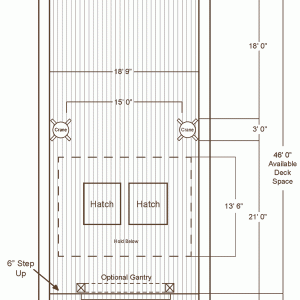

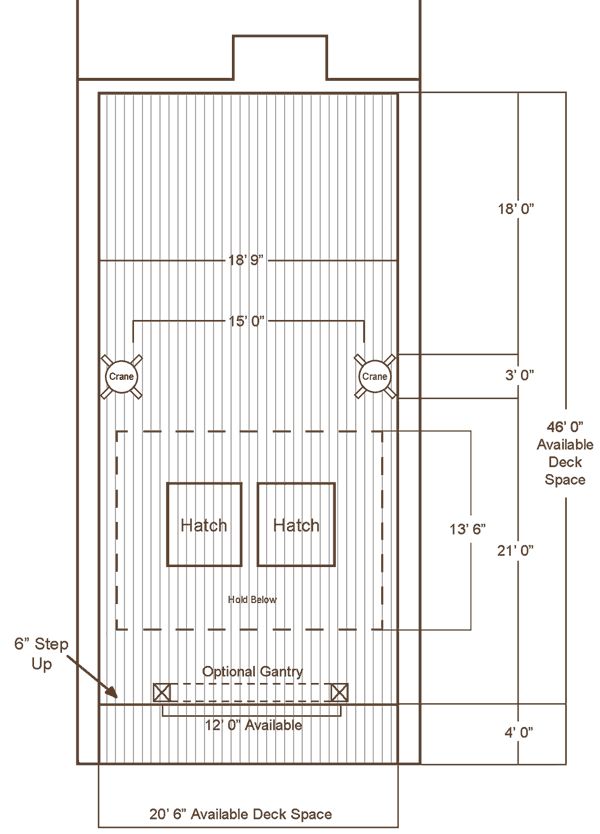

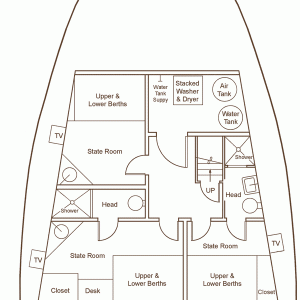

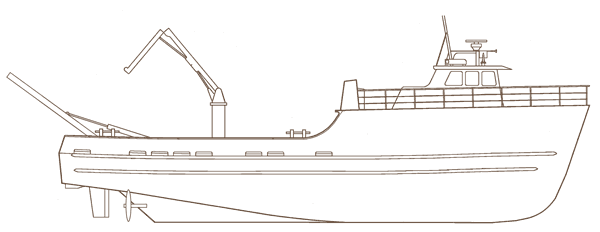

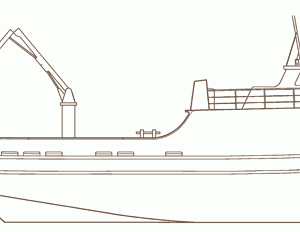

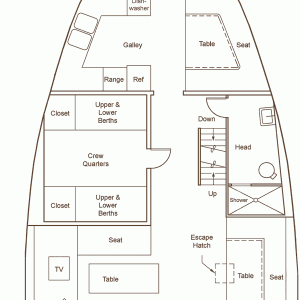

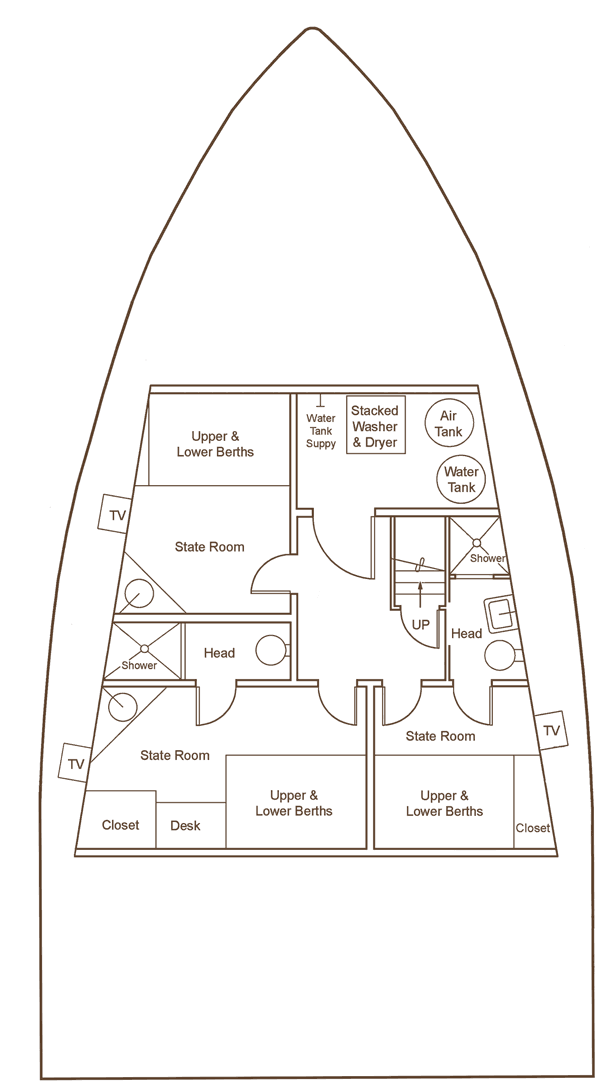

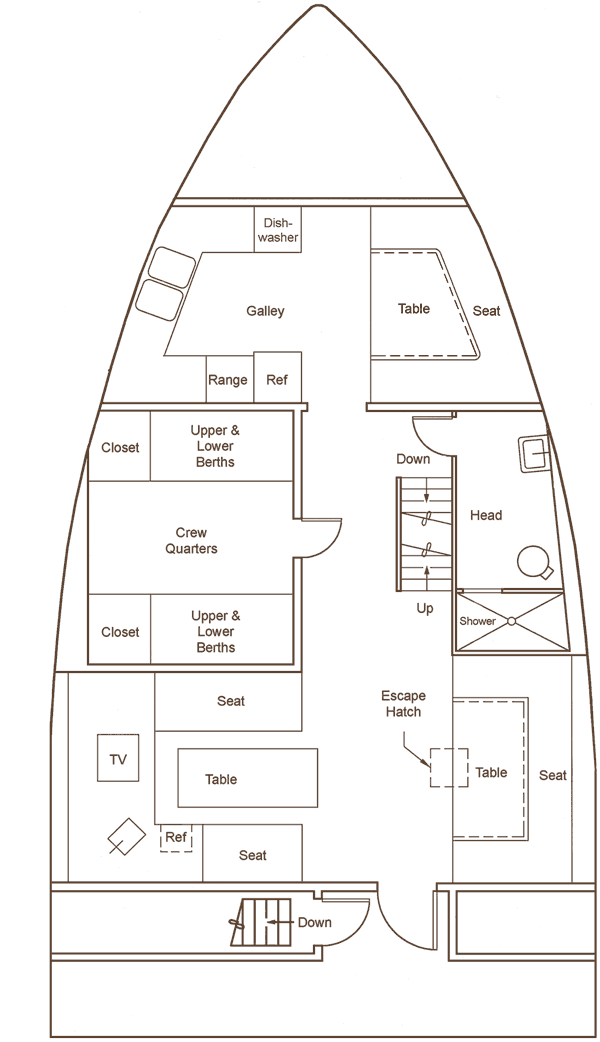

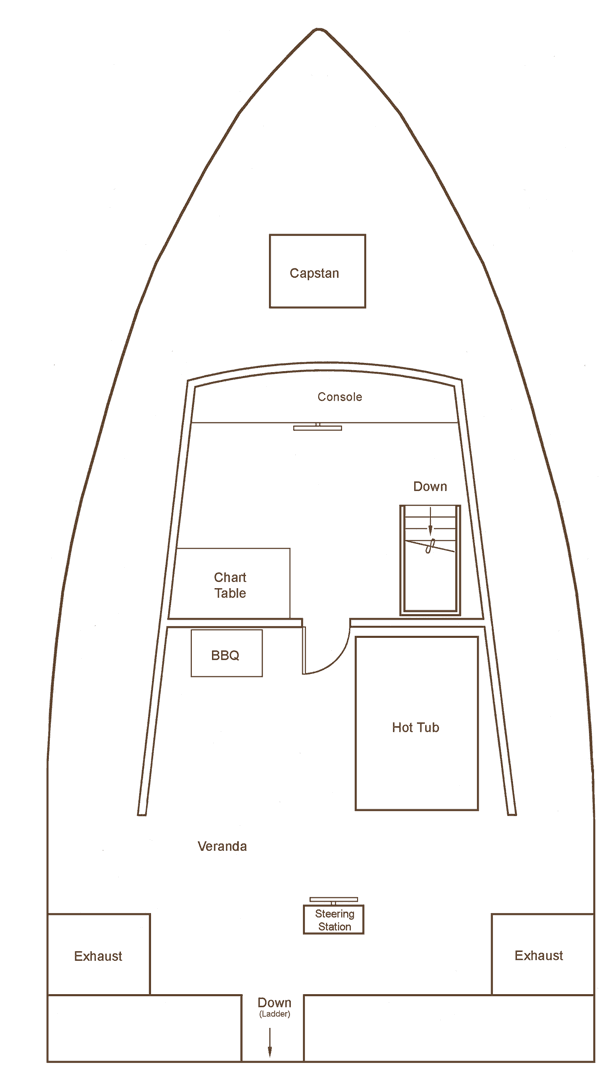

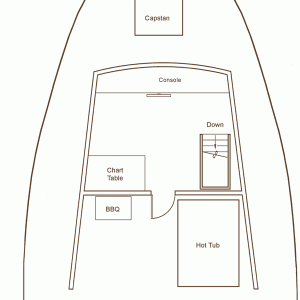

Point Lavinia Schematics

Download a PDF of the Point Lavinia Schematics for detailed layout purposes.
Point_Lavinia_Schematics_v1.pdf (760kb)

General Information

  • Hull Type – Steel
  • Year Built – 1973
  • Cruising Speed – 10 knots
  • Length – 90ft
  • Beam – 25ft
  • Draft – 10ft

Power Systems

  • 2- Detroit 12v71 (800 hp)
  • 1 70KW John Deere Genset
  • 1 40KW John Deere Genset
  • 1 20KW Northern Lights Genset
  • 2 Air Compressors
  • 2 Fuel Transfer Pumps

Electronics

  • 2 – Radar 48 and 24 mile range
  • 2 – Depth Sounders (1 color/picture, 1 dial)
  • Furuno DGPS/Nobletech Navigation Software
  • 3 VHF Radios, 2 Hand Held
  • Single Side Band
  • Satellite phone
  • Cell Phone data system

Deck Equipment

  • 2 – 3000 lb Olympic Cranes
  • 1 – 3 CFM Dive Compressor
  • 1 – 10,000 lb articulating A-frame
  • 14ft aluminum, center console skiff with a high thrust 50hp four stroke motor
